Product Description

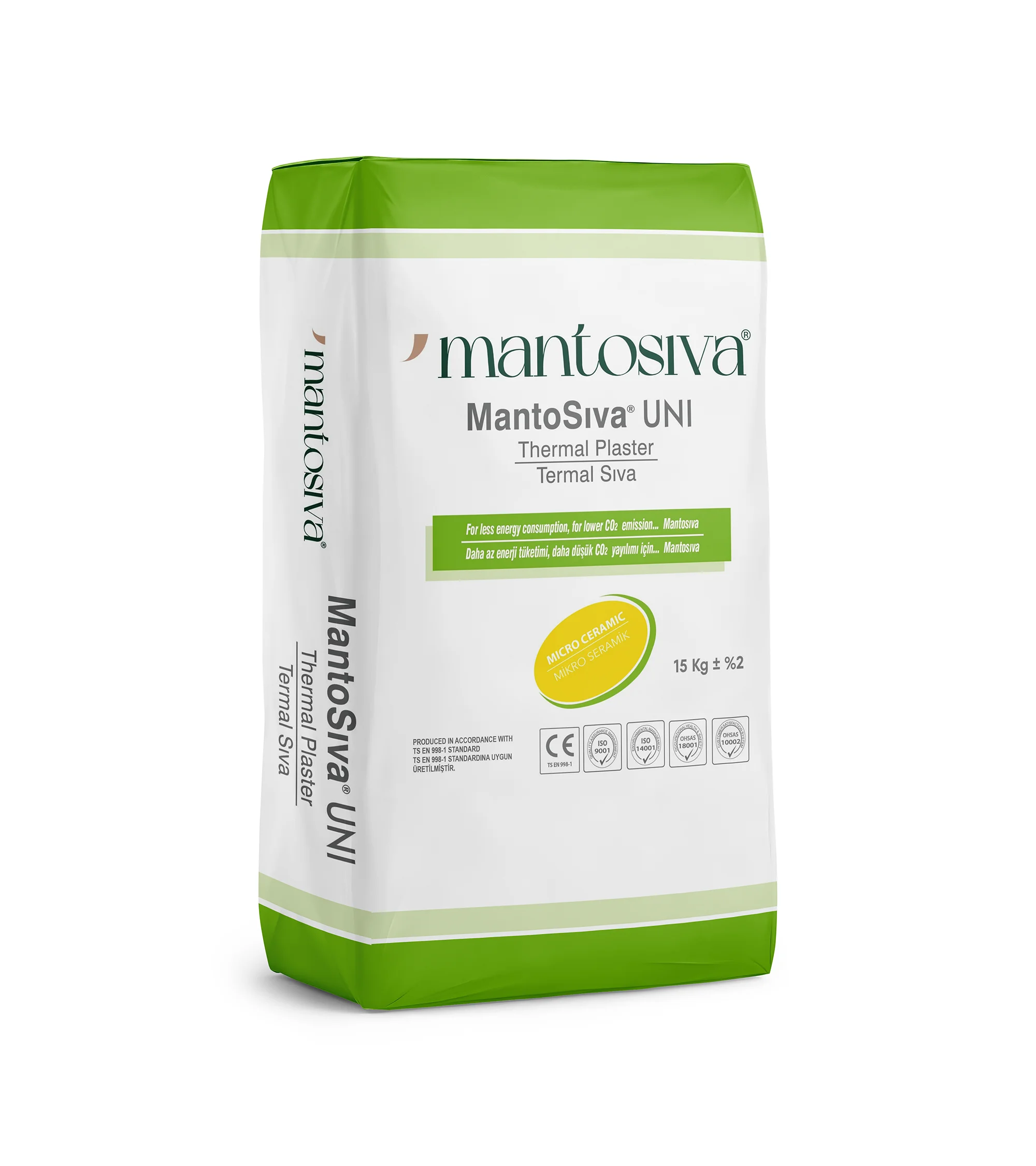

Mantosıva® UNI is an ecological thermal insulation plaster manufactured from inorganic raw materials. Thanks to its special thermal structure, it provides refractory (reflective) properties by breaking and dispersing heat waves, thus ensuring effective thermal insulation. It maintains its performance at high temperatures and contributes to preventing the spread of fire.
Thanks to the natural open and closed air voids in its structure, it has a lightweight composition. With its sound-absorbing properties, it helps reduce high-frequency and impact noises. Thanks to its stable chemical structure, it does not react; with its neutral structure, it does not rot or develop mold when exposed to water. It is resistant to corrosion, rust, and microorganisms.
Applied Surfaces
It can be applied on all types of new and existing buildings, including fair-faced concrete, Ytong, brick, pumice brick, plastered surfaces, and similar mineral-based substrates. For painted surfaces, it is recommended to apply Mantosıva Universal Transition Primer before application in order to improve surface adhesion.
Advantages
Storage
When stored in a dry and moisture-free environment, it can be stored for 18 months from the date of production. During storage, it is recommended that no more than 14 bags be stacked on top of each other.
| Thermal Conductivity Coefficient, λ10,dry (W/m·K) | T1( ≤ 0,1 W/m·K )/0,059 - EN 1745 |
|---|---|
| Reaction to Fire | A1 (F90 / 90 minutes) - EN 13501-1 |
| Adhesion strength(after 28 days) | (FP)B / 0,2 - 1,5 N/mm2 EN 1015 – 12 (N/mm2 and fracture pattern (FP)A,B or C |
| Compressive strength (after 28 days) | CS II / 1,5 - 5 N/mm2 EN 1015 - 11ᵃ |
| Capillary Water Absorption | W1 / c ≤ 0,40 kg/m2. min 0,5 EN 1015 - 18 |
| Water vapourperneability (μ) | ≤ 15 (7.35 µ ) EN 1015 -19 a,b |
| Dry bulk density (kg/m3) | 550 kg/m3 ±%10 kg EN 1015 - 10 |
| Sound insulation dB | 23 dB/ 20 db/(3cm/500hz) EN ISO 10140-2 |
| Joule test | 12 (damaged at 2 joule level) EN 13497 |
| . | . |
| Color/ appearance | lilac gray - White /Granule |
| Packaging shape | 15 or 20 kg ±2%/ Kraft Bag |
| Pallet packing shape | 72 pieces / pallet / 11 rows stacking/1.650 Kg |
| Consumption amount | 5,5 Kg±%15/10 mm for thickness |
| First Drying time | 8 Hours( at 23°C, 50% Relative Humidity ) |
| Full drying time | 36 Hours( at 23°C, 50% Relative Humidity ) |
| Drying Time for Testing | 28 days at 23°C, 50% Relative Humidity ) |
| Application Temperature | to be applied at +5 /+35°C |
| Application Duration (Pot Life) | 4 Hours ( at 23°C, 50% Relative Humidity ) |
| Applicable Thickness | Minimum 10mm, maximum 100mm. Recommended thickness values. |
| Shelf Life | 18 months in dry conditions |
| . | Typical values are obtained from the test results of 4x4x16 mortar prism in 23°C and 50% relative humidity conditions. High temperatures shortens the curing and working time, lower temperatures extends the durations. |
